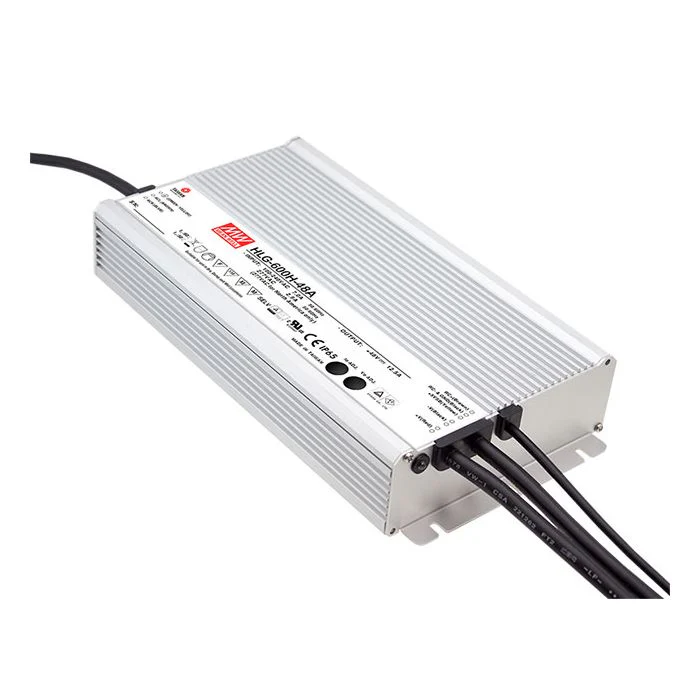

HLG-600H-S - Mean Well HLG-600H Series LED Driver 480W - 605W 12V – 54V
Output voltage and C.C level can be adjusted through internal potentiometerIP65 design for indoor or outdoor installationsProtections: Short circuit / Over current / Over voltage / Over temperatureOther features: Universal AC input (up to 305VAC) / Full range High efficiency up to 95% Output current adjustable through output cable or internal potentiometer Cooling by free air convection Suitable for LED lighting and street lighting applications Meet 4KV surge immunity level (IEC61000-4-5) Built-in active PFC function, PF>0.9 for 60% of load or higher5 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 600 Dimmable (Type) Choose Option EMC Standards Compliance to EN55015, EN61000-3-2 Class C (?50% load) ; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024, light industry level (surge 4KV), criteria A Input Voltage 90~305VAC 127~431VDC Safety Standards UL8750, CSA C22.2 No. 250.13-12, EN61347-1, EN61347-2-13 independent, IP67 Output Voltage Options Single Working Temperature -40~+70°C PDF Datasheet HLG-600H-spec_17.pdf
More Information Manufacturer Mean Well Output Wattage (W) 600 Dimmable (Type) Choose Option EMC Standards Compliance to EN55015, EN61000-3-2 Class C (?50% load) ; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024, light industry level (surge 4KV), criteria A Input Voltage 90~305VAC 127~431VDC Safety Standards UL8750, CSA C22.2 No. 250.13-12, EN61347-1, EN61347-2-13 independent, IP67 Output Voltage Options Single Working Temperature -40~+70°C PDF Datasheet HLG-600H-spec_17.pdf
$394.99
HLG-600H-S - Mean Well HLG-600H Series LED Driver 480W - 605W 12V – 54V—
$394.99
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Output voltage and C.C level can be adjusted through internal potentiometerIP65 design for indoor or outdoor installationsProtections: Short circuit / Over current / Over voltage / Over temperatureOther features: Universal AC input (up to 305VAC) / Full range High efficiency up to 95% Output current adjustable through output cable or internal potentiometer Cooling by free air convection Suitable for LED lighting and street lighting applications Meet 4KV surge immunity level (IEC61000-4-5) Built-in active PFC function, PF>0.9 for 60% of load or higher5 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 600 Dimmable (Type) Choose Option EMC Standards Compliance to EN55015, EN61000-3-2 Class C (?50% load) ; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024, light industry level (surge 4KV), criteria A Input Voltage 90~305VAC 127~431VDC Safety Standards UL8750, CSA C22.2 No. 250.13-12, EN61347-1, EN61347-2-13 independent, IP67 Output Voltage Options Single Working Temperature -40~+70°C PDF Datasheet HLG-600H-spec_17.pdf
More Information Manufacturer Mean Well Output Wattage (W) 600 Dimmable (Type) Choose Option EMC Standards Compliance to EN55015, EN61000-3-2 Class C (?50% load) ; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024, light industry level (surge 4KV), criteria A Input Voltage 90~305VAC 127~431VDC Safety Standards UL8750, CSA C22.2 No. 250.13-12, EN61347-1, EN61347-2-13 independent, IP67 Output Voltage Options Single Working Temperature -40~+70°C PDF Datasheet HLG-600H-spec_17.pdf
