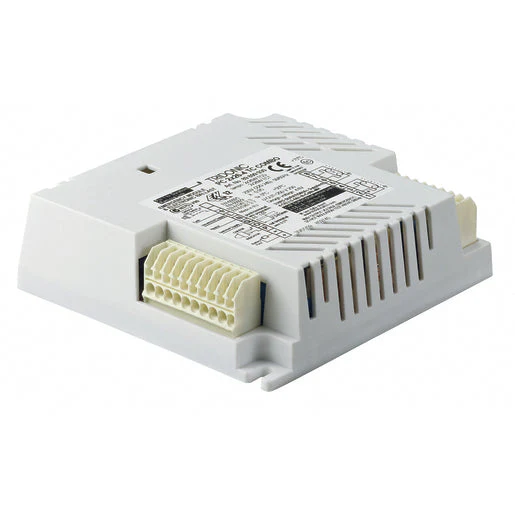

TRIDONIC - PC22632TCCOMB-TR 2x 26/32w 5 Cell TC Combo Ballast obsolete
This item is obsolete please call for viable options
2x 26/32w 5 Cell TC Combo Ballast - Tridonic - 89899998 - PC226325COMBO
Product Details
Combined electronic ballast and emergency lighting unit for TC-D and TC-T compact fluorescent lamps and manual testing of the emergency lighting function. It features lightweight one-part emergency lighting unit, simple wiring, 3 hour rated duration, lamp warm start in normal operation, automatic restart after re-lamping in normal operation, green charge status display LED Intelligent and voltage guard. It offers checking the emergency lighting function by interrupting the unswitched phase IDC terminals for automatic and manual wiring, optional test switch, electronically controlled battery charging, deep discharge protection, short-circuit-proof battery connection and polarity reversal protection for battery.
- · Requires 5-cell high temperature Ni-Cd batteries
- · 5 year guarantee
- · IP20 protection
Technical Specifications
Emergency unit for luminaire |
|
| Wiring system | Continuous circuit/emergency circuit |
|---|---|
| Monitoring equipment | No |
| Number of cells | 5 |
| Lamp type | Compact Fluorescent |
| Power | 64 W |
|---|---|
| Nominal voltage | 220 - 240 V |
| With remote switch connection | Yes |
| Autonomy | 1 h |
$118.56
TRIDONIC - PC22632TCCOMB-TR 2x 26/32w 5 Cell TC Combo Ballast obsolete—
$118.56
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
This item is obsolete please call for viable options
2x 26/32w 5 Cell TC Combo Ballast - Tridonic - 89899998 - PC226325COMBO
Product Details
Combined electronic ballast and emergency lighting unit for TC-D and TC-T compact fluorescent lamps and manual testing of the emergency lighting function. It features lightweight one-part emergency lighting unit, simple wiring, 3 hour rated duration, lamp warm start in normal operation, automatic restart after re-lamping in normal operation, green charge status display LED Intelligent and voltage guard. It offers checking the emergency lighting function by interrupting the unswitched phase IDC terminals for automatic and manual wiring, optional test switch, electronically controlled battery charging, deep discharge protection, short-circuit-proof battery connection and polarity reversal protection for battery.
- · Requires 5-cell high temperature Ni-Cd batteries
- · 5 year guarantee
- · IP20 protection
Technical Specifications
Emergency unit for luminaire |
|
| Wiring system | Continuous circuit/emergency circuit |
|---|---|
| Monitoring equipment | No |
| Number of cells | 5 |
| Lamp type | Compact Fluorescent |
| Power | 64 W |
|---|---|
| Nominal voltage | 220 - 240 V |
| With remote switch connection | Yes |
| Autonomy | 1 h |
